An example flow primitive implementation which uses potential flow theory to simulate the flow around a cylinder. More...

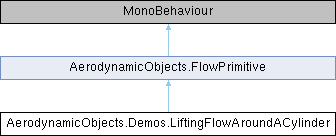

Inheritance diagram for AerodynamicObjects.Demos.LiftingFlowAroundACylinder:

Public Member Functions
void	Start ()

override Vector3	VelocityFunction (Vector3 position)
	Override this function to change the way the velocity of the fluid is calculated. More...

Public Member Functions inherited from AerodynamicObjects.FlowPrimitive
void	GetInteractionID ()
	Obtains a unique interaction ID for the object. More...

virtual void	Awake ()

virtual void	OnEnable ()

virtual void	OnDestroy ()

virtual void	OnDisable ()

void	AddSelfToScene ()

void	AcquireFluidVolume (FluidVolume fluidVolume)

void	RemoveFromScene ()

Vector3	VelocityFunction (Vector3 position, int flowAffectedID)
	Wrapper function which first checks if the interaction should happen. More...

virtual Vector3	VelocityFunction (Vector3 position)
	Override this function to change the way the velocity of the fluid is calculated. More...

bool	IsInteractionIgnored (int flowAffectedID)

void	IgnoreInteraction (int flowAffectedID)

void	IgnoreInteraction (FlowAffected flowAffected)

void	AddSelfToGlobalFluid ()

void	RemoveSelfFromGlobalFluid ()

Public Attributes
float	circulationStrength

Public Attributes inherited from AerodynamicObjects.FlowPrimitive
float	strengthScale = 1f
	This value is used to scale the flow primitive behaviour. More...

int	interactionID = 0
	The unique ID number for this flow primitive, used for identifying pairs of ignored interactions by the FlowInteractionManager. More...

Detailed Description

An example flow primitive implementation which uses potential flow theory to simulate the flow around a cylinder.

Member Function Documentation

void AerodynamicObjects.Demos.LiftingFlowAroundACylinder.Start ( )

override Vector3 AerodynamicObjects.Demos.LiftingFlowAroundACylinder.VelocityFunction ( Vector3 position )

virtual

Override this function to change the way the velocity of the fluid is calculated.

Parameters

position Position of the object in the global (earth) frame of reference.

Returns: The velocity of the fluid at the given position in the global (earth) frame.

float AerodynamicObjects.Demos.LiftingFlowAroundACylinder.circulationStrength
